Product Introduction:
PTFE Backup Rings provide additional support for elastomeric seals, including O-rings and star rings, helping prevent them from being forced into the clearance gap under pressure. Typically installed on the low-pressure side of the seal, a backup ring helps reduce the risk of seal extrusion. Material selection and ring geometry should be matched to the sealing groove, operating pressure, temperature, and sealing medium.
Send Inquiry

Ningbo Zhonggao Rubber & Plastic Manufacturing Co., Ltd. is one of the most reliable manufacturers and suppliers of ptfe backup ring in China. The company has world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale custom made ptfe backup ring from our factory.



Technical Specifications



Item

Specifications

Product Name

PTFE Backup Ring

Material Options

Pure PTFE, Glass-Filled PTFE, Graphite-Filled PTFE

Cross-Section Shapes

Rectangular, V-shaped, L-shaped

Reference Temperature Range

-100°C to +280°C; short-term exposure up to +300°C

Friction Coefficient

0.04–0.1

Primary Function

Helps prevent O-rings and other elastomeric seals from extruding into clearance gaps under pressure

Material Characteristics

PTFE offers low friction and chemical resistance. Glass-filled PTFE provides increased rigidity and extrusion resistance; graphite-filled PTFE is an option for high-temperature applications.

Customization

Custom dimensions, cross-sectional profiles, and material options to suit the sealing assembly



Selection Considerations: Material grade and ring geometry should be selected according to operating pressure, clearance gap, temperature, chemical medium, and groove design.





Custom PTFE Backup Rings



Zhonggao offers material options, cross-sectional designs, and secondary machining for PTFE Backup Ring projects. The final configuration should match the existing sealing arrangement and the buyer's dimensional and operating requirements.

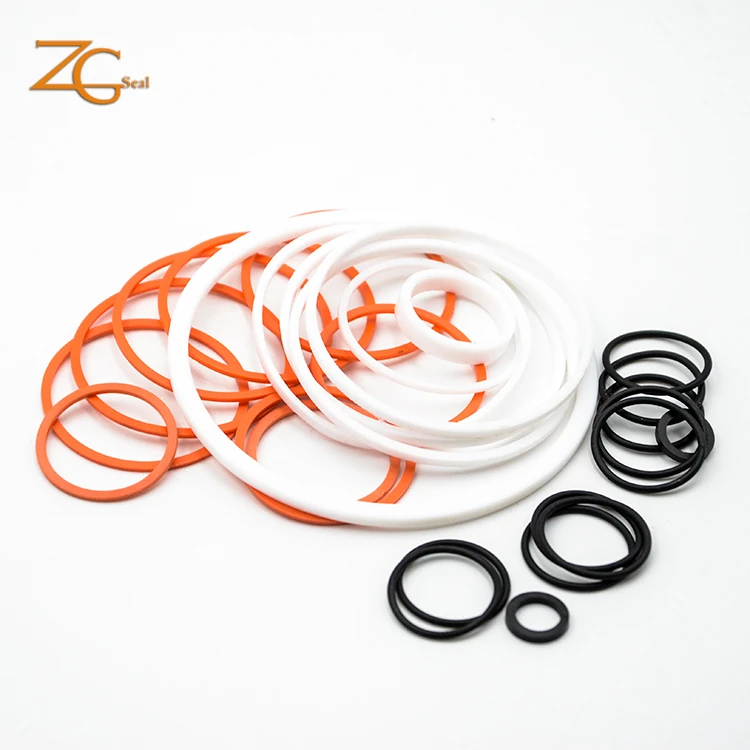

image 237



Material Options

  • Pure PTFE: An option for applications where chemical resistance is a key selection factor.
  • Glass-Filled PTFE: Provides increased rigidity and extrusion resistance compared with unfilled PTFE. The original product information identifies it for high-pressure applications, including those above 40 MPa. Confirm suitability for the actual design and operating conditions before specifying this pressure range.
  • Graphite-Filled PTFE: Listed for certain high-temperature applications, including steam and hot-oil systems. The stated short-term temperature capability of up to +300°C requires confirmation for the selected compound and service conditions.



Cross-Section and Dimensional Requirements

Available cross-sectional shapes include rectangular, V-shaped, and L-shaped designs. The profile and dimensions need to match the sealing groove and the seal being supported.

For a custom inquiry, provide a drawing or sample along with the relevant groove dimensions and seal type. If available, include the operating pressure, temperature, and sealing medium to support the material and configuration review.



Secondary Machining

The original product page lists the following value-added machining options:

  • Precision perforation
  • CNC stamping
  • Edge profiling

Provide the required machining details or drawing so the requested geometry can be reviewed for feasibility.



Discuss Your Requirements





Manufacturing Capability



Ningbo Zhonggao Rubber & Plastic Manufacturing Co., Ltd. provides manufacturing and OEM/ODM services for sealing components. For PTFE Backup Ring projects, the product-specific options listed on the source page include material selection, cross-sectional customization, and secondary machining.

The company reports a 5,000 m² factory, 20 production lines, more than 20,000 molds, and over 40 technicians. These figures describe company-wide resources and should not be interpreted as dedicated PTFE Backup Ring production capacity.





Quality Control



Zhonggao states that products undergo quality control inspection before shipment. For a custom PTFE Backup Ring order, buyers should confirm the applicable inspection items and acceptance criteria before production.

To avoid ambiguity, specify the required dimensions, material grade, cross-sectional profile, and any documentation needed for acceptance. Availability of material records, dimensional inspection reports, or other supporting documents should be confirmed when requesting a quotation.





B2B Ordering and Supply



For a PTFE Backup Ring quotation, provide the following information where available:

  • Drawing or sample: An existing ring drawing, physical sample, or dimensional specification.
  • Sealing arrangement: O-ring or star ring type, groove dimensions, and installation position.
  • Operating conditions: Working pressure, temperature, movement, and sealing medium.
  • Material preference: Pure PTFE, glass-filled PTFE, graphite-filled PTFE, or a material requiring review.
  • Order quantity: Estimated quantity and expected purchasing frequency.
  • Additional requirements: Special machining, inspection documentation, packaging, or transportation preferences.

Zhonggao can review the supplied information to clarify the requested configuration and quotation requirements. MOQ, sample arrangements, production lead time, inspection documentation, and packaging details should be confirmed for the specific order.





FAQ



Q: Can you manufacture PTFE Backup Rings from customer drawings or samples?

A: You can submit an existing drawing or sample for review. Include the groove dimensions and the type of seal being supported so the requested profile and dimensions can be assessed against the installation arrangement.

Q: What information is needed to quote a custom PTFE Backup Ring?

A: Provide the available drawing or sample, groove dimensions, seal type, preferred material, estimated order quantity, and operating conditions. If some details are not yet available, identify the requirements that still need confirmation.

Q: Can special inspection documents be provided with an order?

A: Inspection requirements should be discussed when requesting a quotation. Specify the documents or dimensional acceptance criteria required for your project so their availability can be confirmed before the order is placed.

Q: Can packaging or transportation arrangements be customized?

A: The original product page states that packaging and transportation arrangements can be changed upon request. Any additional costs or price differences should be confirmed before shipment; the source page states that these additional costs are borne by the buyer.





Request a PTFE Backup Ring Quote
Send your drawing or sample, groove dimensions, preferred material, operating conditions, and estimated order quantity to discuss a suitable PTFE Backup Ring configuration for your application.
